This kind of inductor has small volume, small distributed capacitance, good frequency characteristics, can obtain a higher Q value and radio frequency (SRF), special structure, can withstand a higher empty intercept current, so it is very popular with customers.
1.Rated voltage........................................................250V DC
2.Temperature rise........................................................45℃
3.Temperature range.............................................-25℃ to +85℃
4.PLN minimum pull on foot ..........................................0.5Kg MIN
1. operating conditions
2.specification
1.magnetic core |
2.Outer package: varnish Or PVC sleeve or UL sleeve |
3.enamelled wire |
4.pinout use tinned wire |
3. hape and size
(1)size (unit: mm) | (2)wiring diagram |
DIMENSION | A | B | C | D |
| F | ||||||
FORM | ||||||||||||
PK0406 TYPE | 5.0 | 8.0 | 20.0 | 3.0 | 0.50 | 2.0 | ||||||
PK0608 TYPE | 7.0 | 10.0 | 20.0 | 3.0 | 0.65 | 3.0 | ||||||
PK0810 TYPE | 9.0 | 12.5 | 20.0 | 3.0 | 0.65 | 5.0 | ||||||
PK1012 TYPE | 13.0 | 14.0 | 20.0 | 3.0 | 0.80 | 6.0 | ||||||
PS:We can also provide other sizes of cores for customers to choose from

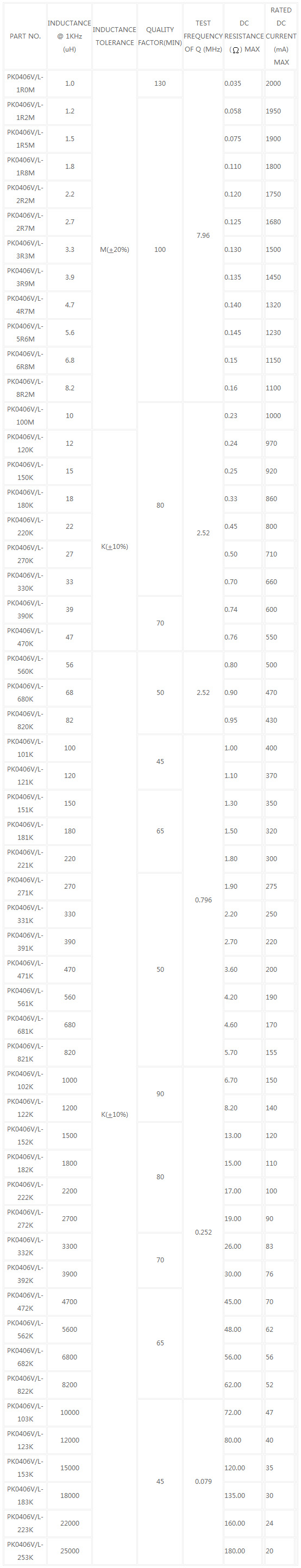

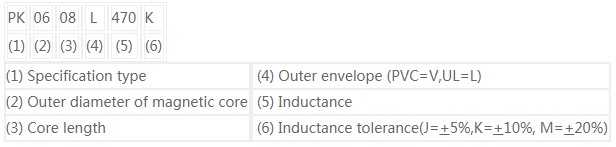

5. PK0406(0406 Similar 0455）

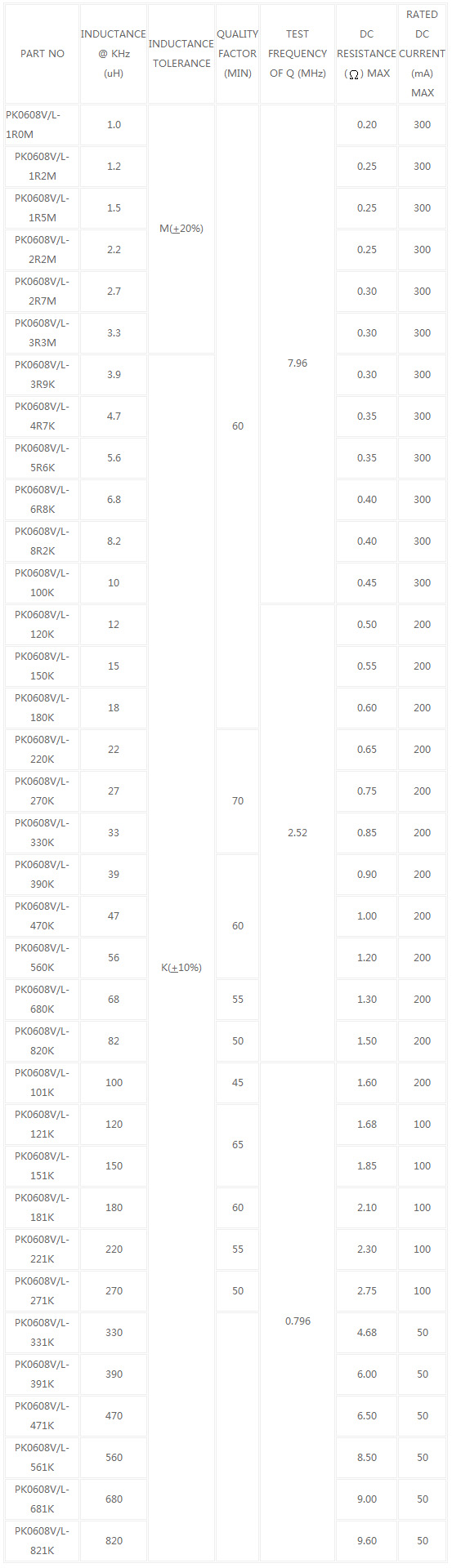

6. PK0608

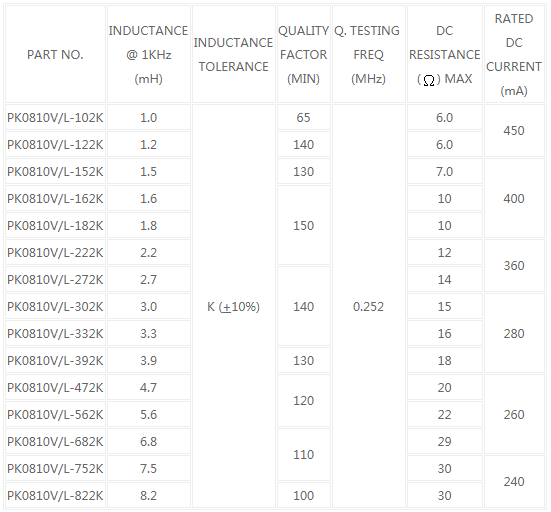

7. PK0810

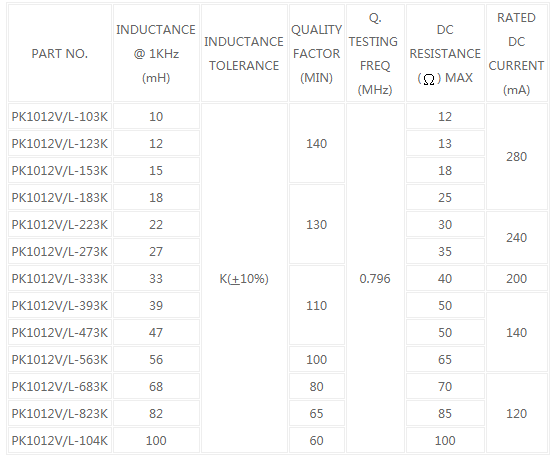

8. PK1012
9. PK3W

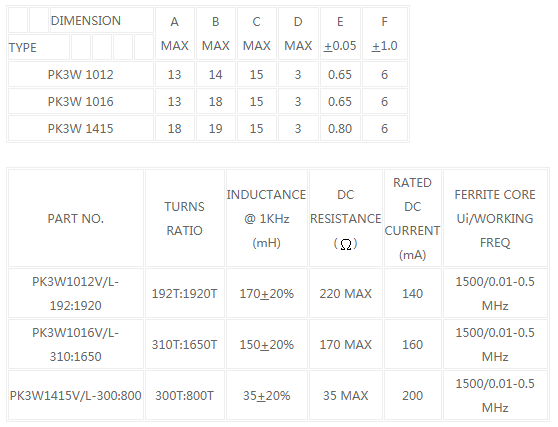

PK3W Class |

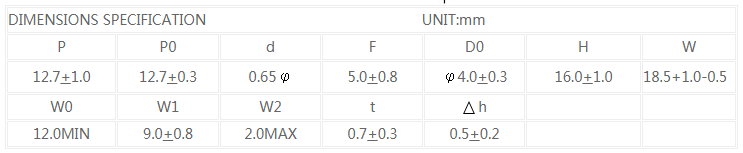

10. PK0608 Class packing exterior dimension
