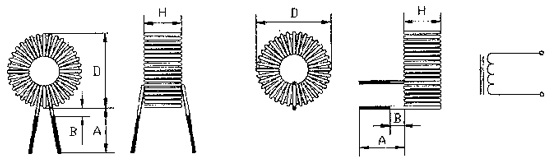

1.Appearance size(unit:mm)
(1).TCV type (2).TCH type (3).wiring diagram
| 2.description |
TCH/V-5026-020-300 M
(1)type:HVAccording to horizontal,V Table type vertical
(2)Magnetic core specification:2026 3026 3726 4426 5026 6026...
(3)Current: according to customer requirements
(4) Inductance: according to customer requirements
(5)tolerance(J:±5%,K:±10%,M:±20% )

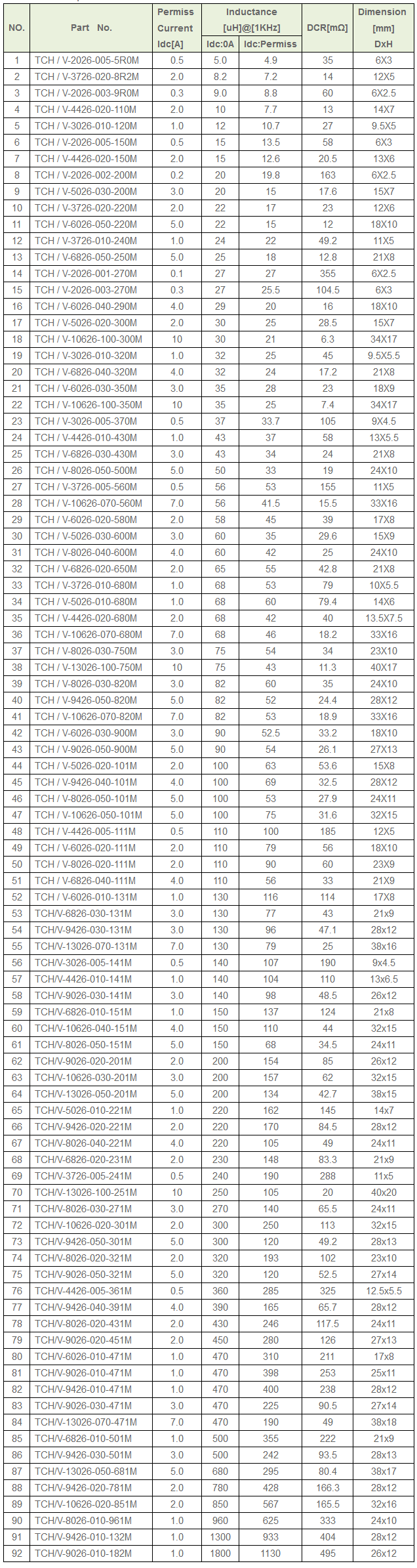

3.Reference Specification:
