Detailed Description
1.Brand Name: PZX
2.Packaging: Bulk, Tape & Reel, Custom Package.
3.Inductance: 0.1uH~1.0mH
4.IDC:700mA~20mA
5.Low DCR
6.Quality Approvals:RoHs
Naming rules：
1. Series Name :
2. Dimensions : 0204, 0307, 0410, 0510
3. Inductance: uH
4. Tolerance Code: J:±5%,K:±10%,L:±15%,M:±20%,P:±25%,N:±30%
5. Eads Configuration：

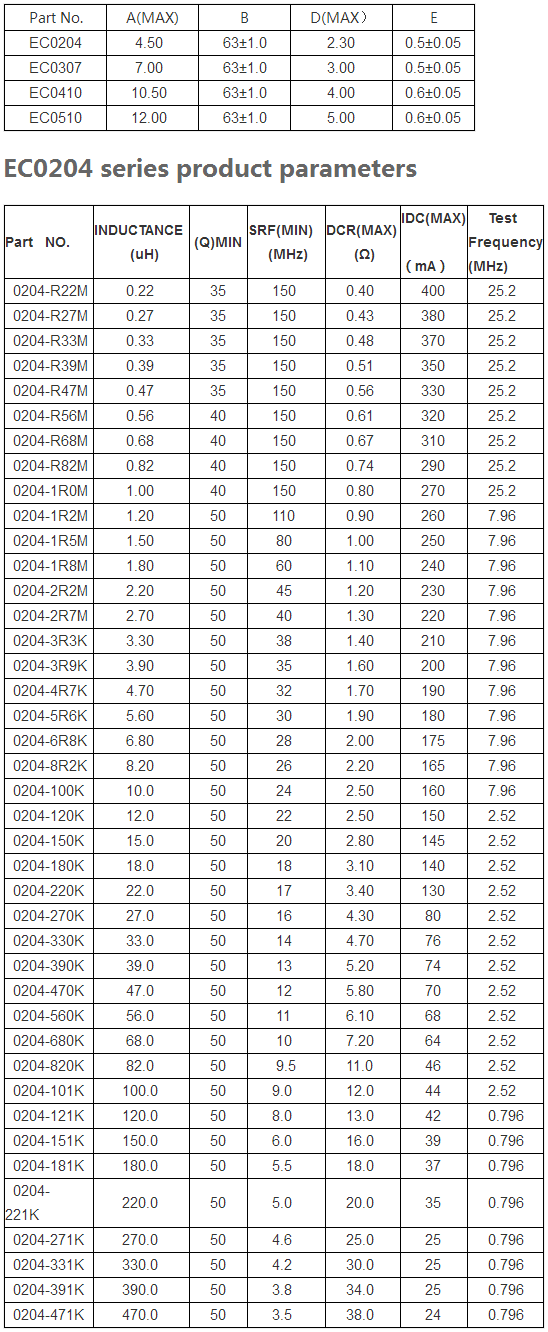

Specification and size:
Test Equipment: HP4385A (HP4286A HP4287A) HP42841A
Ambient Temperature: 22~28℃
Ambient Humidity: 65%~75%
