Large current filter inductor
Features: low cost and flexible design, the outer layer can be immersed in vermicular water or protected by UL bushing, with excellent insulation, to the current changes, inductance has a considerable stability, generally used in the power output or parallel circuit, as a filter and rectifier.
VFC type（impregnation encapsulation）
1.Shape and size（unit：mm）
VFC50201-XXX(monolayer)
VFC63351-XXX(monolayer)
VFC63352-XXX(double-deck)
VFC63353-XXX(multilayer)
2.Specifications (customers are welcome to submit customized specifications)
(1) impregnationEncapsulation type
(2) Magnetic core size
(3) Winding layer
(4) inductance value
(5) tolerance (K:±10%,L:±15%,M:±20%)

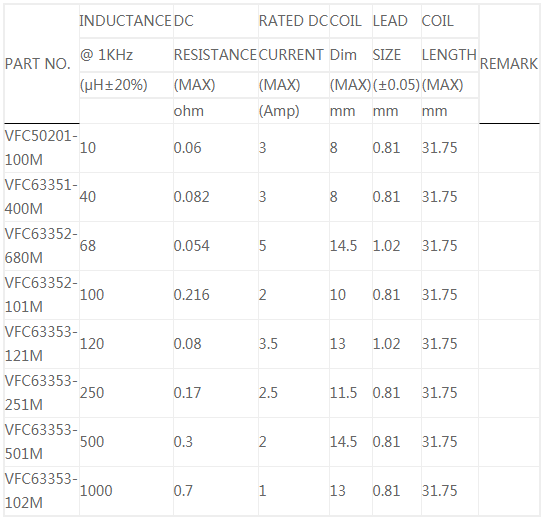

3.specification
UFC type（ULdrivepipe）
1.Shape and size（unit：mm）
appearance： wiring diagram：
2.specification Description (customers are welcome to submit customized specifications)
(1) UL Casing encapsulation
(2) Magnetic core size
(3) Winding layer
(4) inductance value(μH)
(5) tolerance (K:±10%,L:±15%,M:±20%)

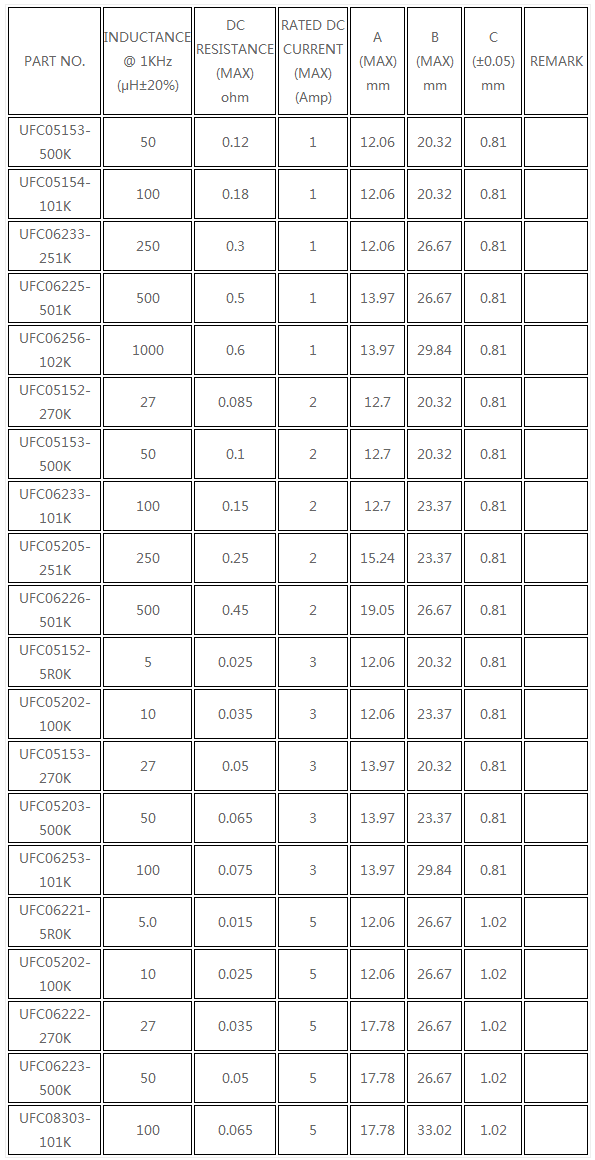

3.specification
KV type
1.Shape and size（unit：mm）
PS:Number of winding layers :1-3 layers
2.Specifications (customers are welcome to submit customized specifications)
(1) Specifications and types
(2) Magnetic core size
(3) inductance value(μH)
(4) tolerance (K:±10%,L:±15%,M:±20%)

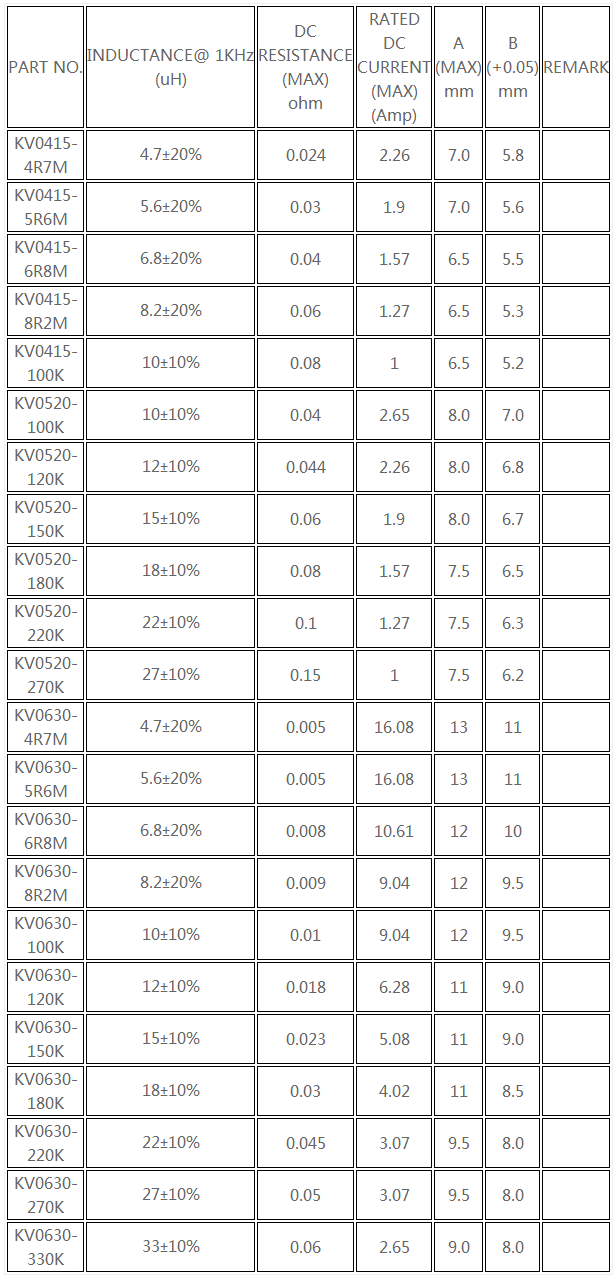

3.specification
FFC type（impregnated）
1.Shape and size（unit：mm）
1) FFC0205~FFC0630 2) FFC0820~FFC1040
PS:Pin tin plating scope According to customer requirements
2.Specifications (customers are welcome to submit customized specifications)
(1) General impregnated inductance
(2) Magnetic core size
(3) inductance value(μH)
(4) tolerance (K:±10%,L:±15%,M:±20%)
3.specification
1) FFC0205~FFC0630
* inductance is measured under static conditions
* if the current increases to the maximum value, the inductance decreases by no less than 10%
* the average current shall not exceed the permitted current specified
±
