Detailed Description
1. Brand Name: PZX
2. Rated current: 0.1-5A
3. Inductance: 1~1000uH
4. RoHS Compliant Product
Features
Designed for surface welding
EMI/EMC SMD Power Inductors
High Quality Factor
High Current and High Inductance
Ideal for Adjuster, Power Amplifier, Power Supply, EMI/EMC Noise Filter Applications
PART NUMBERING SYSTEM
| WT43- 1R4K |
| (1) (2) (3) (4) |
(1) Series: WT (power inductors)
(2) Core Dimensions: 43 54 75 104 105 125 127
(3) Inductance: 1R4 (=1.4μH) 220 (=22μH)
(4)Tolerance: J:±5%, K:±10%, L:±15%, M:±20%, P:±25%,N:±30%
Shapes and Dimensions
1) WT43~WT105
2) WT125~WT127
Please note that the unshielded smd power inductors shown below represent a small sample of the different configurations and packages we offer. We are able to custom design all the unshielded smd power inductors listed below and more.
TYPE | A | B | C | D |
WT 43 | 4.4MAX | 3.8MAX | 4.7MAX | 1.0 REF |
WT 54 | 5.5 MAX | 5.0MAX | 6.1 MAX | 1.3 REF |
WT 75 | 7.2 MAX | 5.6 MAX | 7.9 MAX | 2.1 REF |
WT104 | 9.5 MAX | 4.5 MAX | 10.2 MAX | 2.1 REF |
WT105 | 9.5 MAX | 6.4 MAX | 10.4 MAX | 2.9 REF |
WT125 | 12.5+0.3 | 12.5+0.3 | 5.8+0.3 | |
WT127 | 12.5+0.3 | 12.5+0.3 | 7.6+0.3 |
Packaging
TAPING
*WT43; 12m/m 2000pcs/REEL *WT104; 24m/m 500pcs/REEL
*WT54; 12m/m 1500pcs/REEL *WT105; 24m/m 500pcs/REEL
*WT75; 16m/m 1000pcs/REEL *WT125; 32m/m 300pcs/REEL
*WT127; 32m/m 300pcs/REEL"

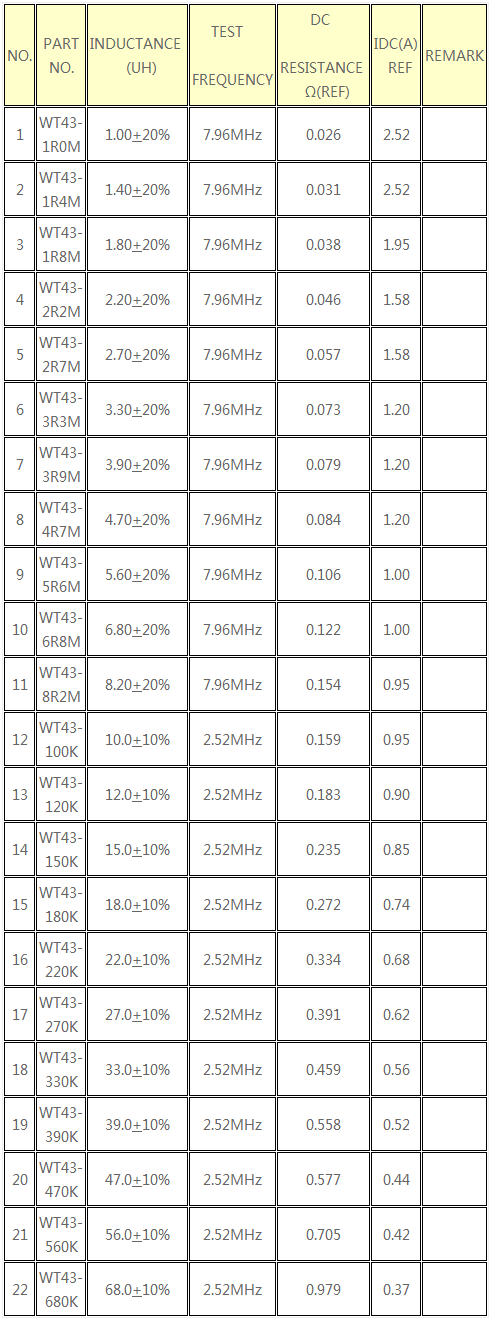

(1) WT43 Series
Test equipment: 1. HP4286 A 2. CH502AC

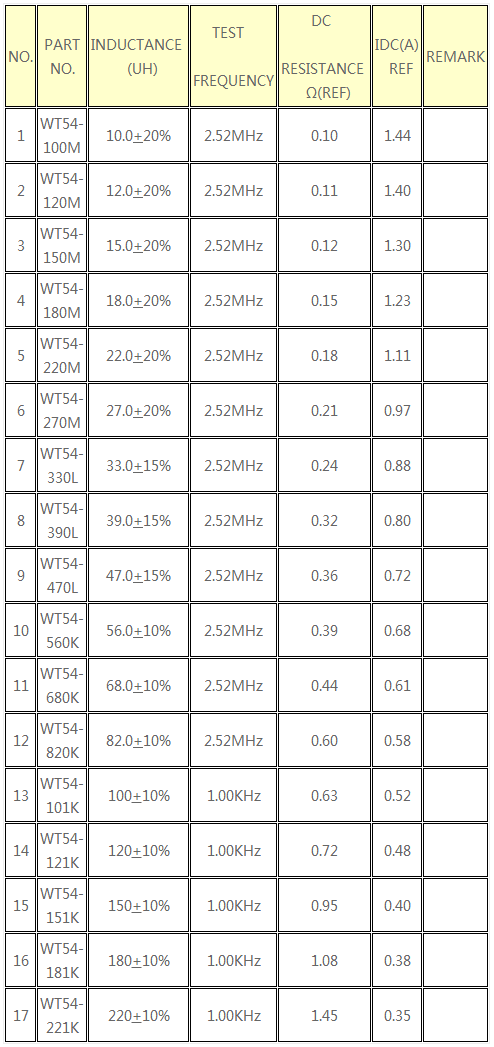

(2) WT54 Series
Test equipment: 1. HP4286 A 2. HP4284 A 3. CH502AC

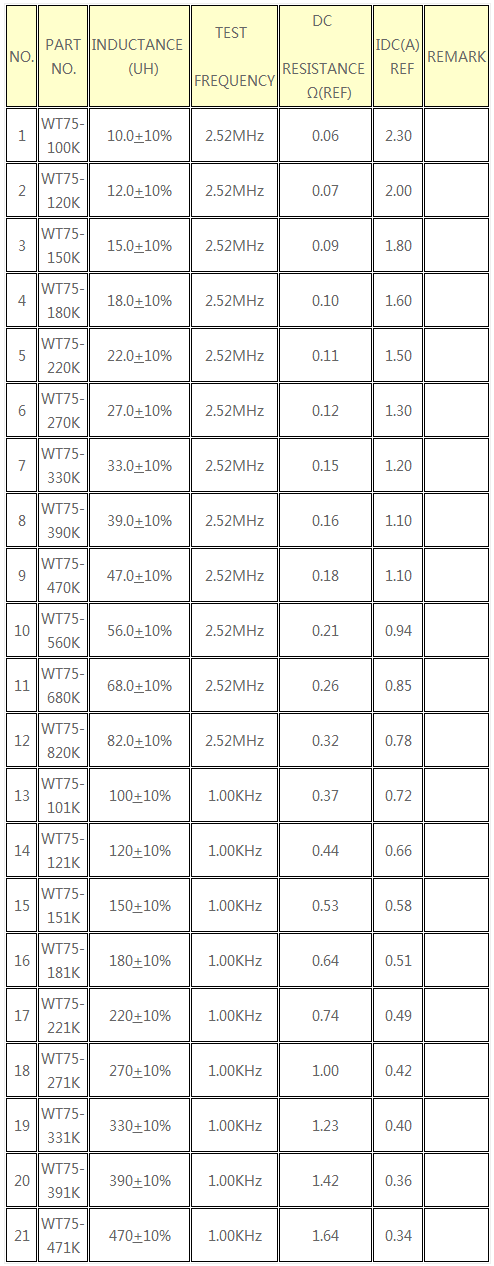

(3) WT75 类型
Test equipment: 1. HP4286 A 2. HP4284 A 3. CH502AC

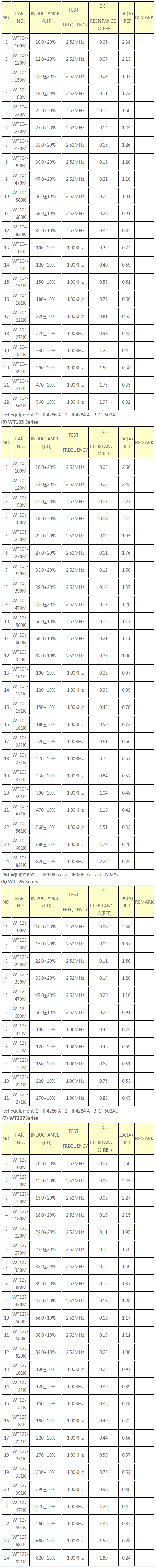

(4) WT104 Series
★Design according to customer’s requested Specification.
