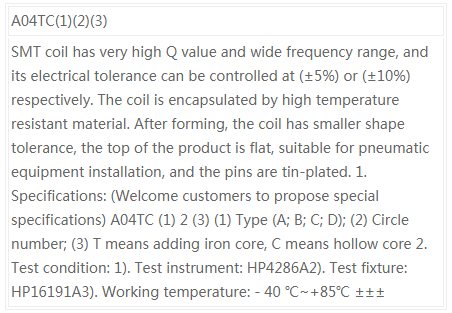

The SMT coil has a very high Q value and a wide frequency range, and its electrical tolerance can be controlled at (±5%) or ±10%) respectively. The coil is encapsulated by high temperature resistant material. After forming, the coil has smaller external tolerance, flat top of the product, and is suitable for pneumatic equipment installation. The pins are treated by tin plating.

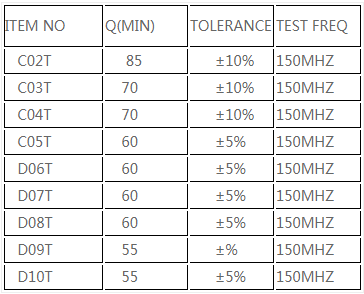

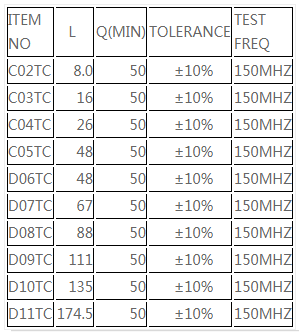

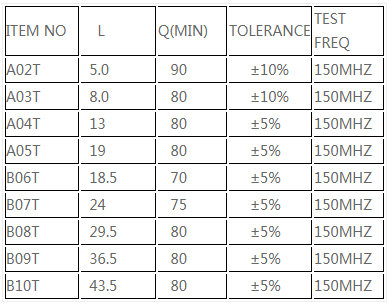

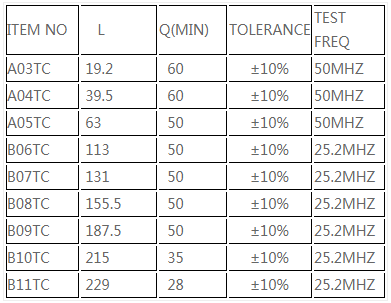

1. Specifications: (Welcome customers to propose special specifications)

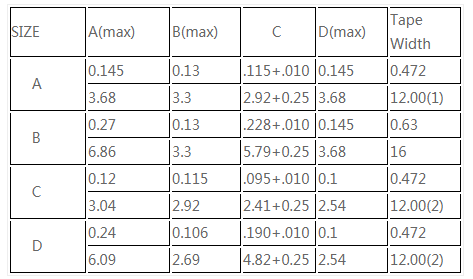

1. Appearance size:

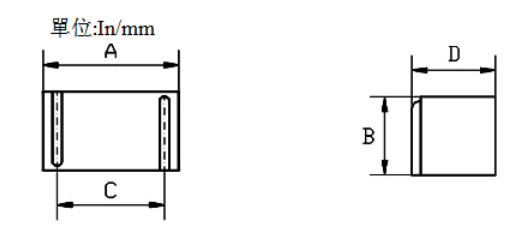

2.Then the schematic diagram:
